Overfitting

Relationship Between Model Fit and the Number of Explanatory Variables

In a statistical model, the fit of the model to the data refers to the extent to which the observed values of the response variable approximate the corresponding values estimated by the model. The fit is often measured using the coefficient of determination R2, the value of which ranges between 0 (no fit) and 1 (perfect fit).

As one adds new explanatory variables (or parameters) to a given model, the fit of the model typically increases (or occasionally stays the same, but will never decrease). That is, the increase in fit does not depend on whether a given explanatory variable contributes [Page 1140]significantly to the overall fit of the model or adds to its predictive power. Therefore, all other things being equal, a larger number of explanatory variables typically means better fit, but it does not necessarily mean a better model.

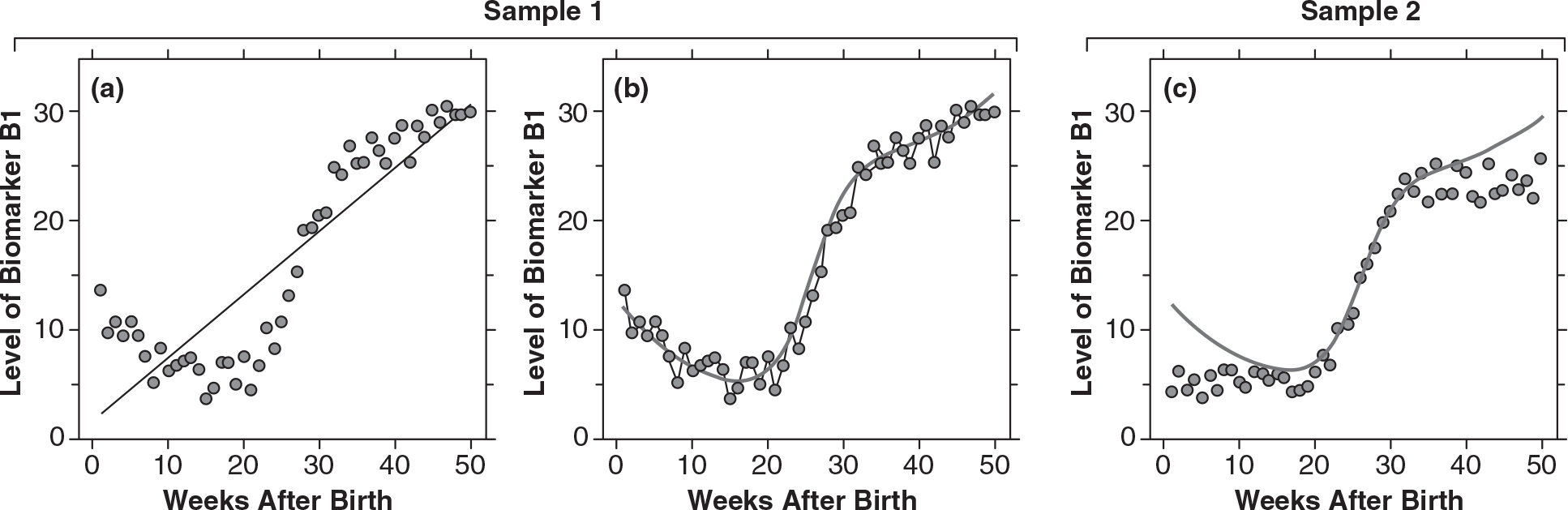

Figure 1 Overfitting and Underfitting

Notes: These hypothetical clinical data show the blood levels of a biomarker B1 in a group of newborn infants measured during the first 50 weeks of their lives. Panels A and B are from the first group of babies (Sample 1), and the data in Panel C are from a different, independent sample. The dots represent the observed values of the biomarker (in arbitrary units). The thin black lines represent the underfitted and overfitted models (Panels A and B), respectively. The thick gray line in Panel B denotes the parsimonious model that best fits Sample 1. The same model is also shown in Panel C for comparison. Note that even though the model fits the data in Sample 1 rather well, it fails to predict the new data in Sample 2.

How many variables are too many depends on the model and the data. There is no preset number of variables above which the model is considered overfitted. Rather, overfitting is a graded property of a model: A given model is more or less overfitted depending on the number of parameters it has relative to the number of parameters actually needed.

Why Overfitting Is Undesirable

The function of a statistical model is twofold: First, it should help account for, or explain, the observed values in the original sample(s) on which it is based. Second, and more importantly, it should reliably predict the observed values in new testing samples. Overfitting compromises both the explanatory and predictive abilities of a model.

...
